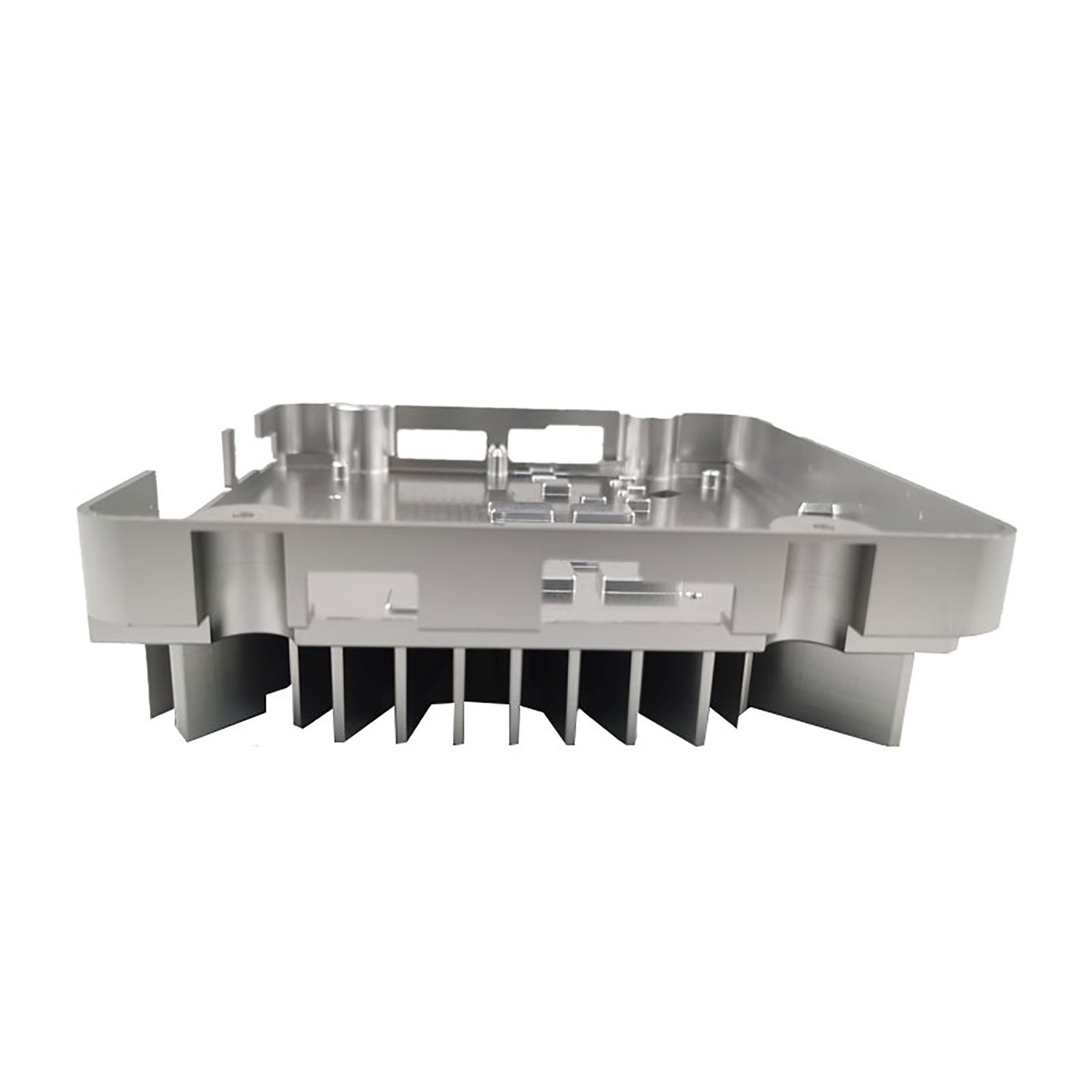

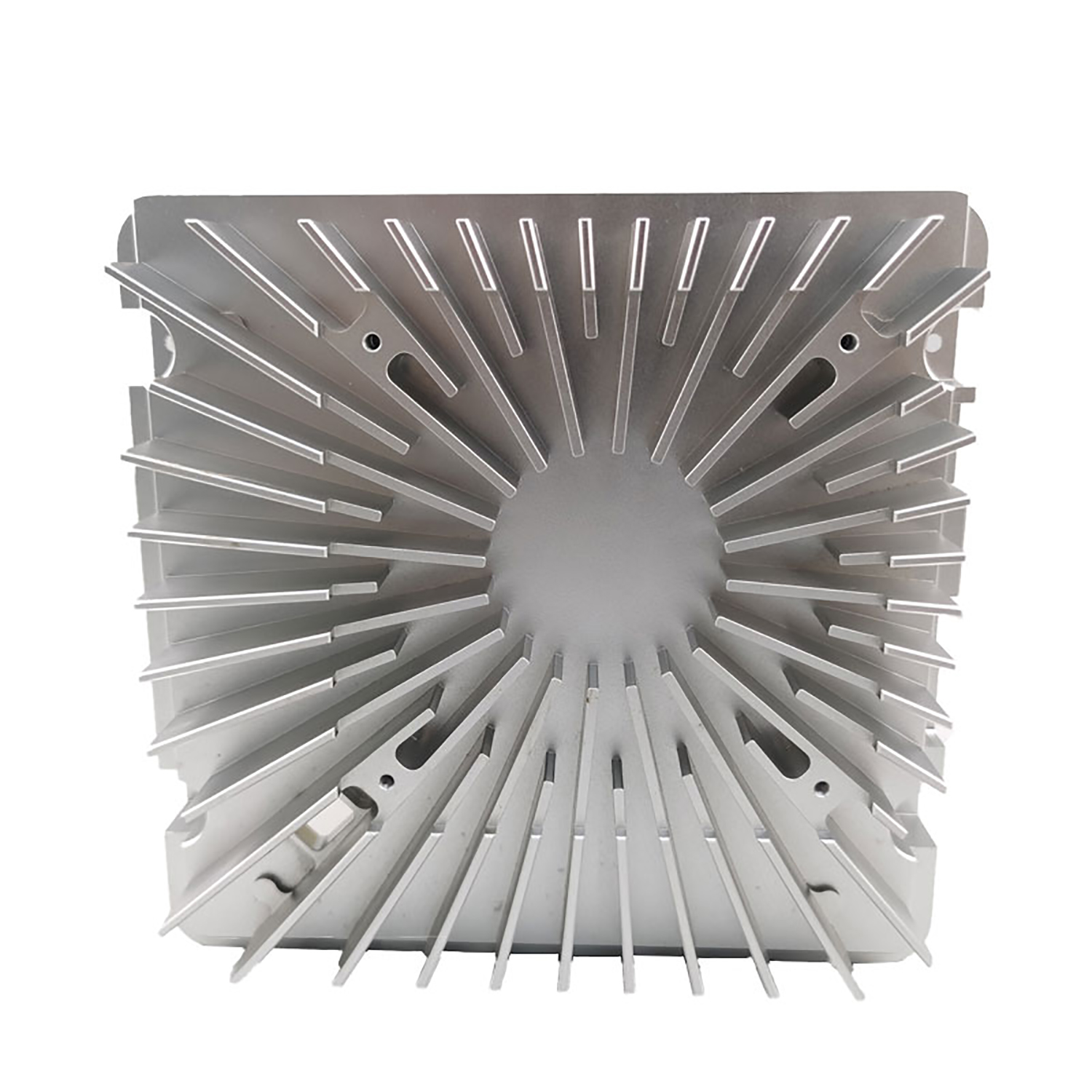

【Part name】 6061 aluminum alloy parts are machined for cooling system of intelligent automation equipment
【Manufacturing process】CNC milling machine processing
【Product features】 thin wall easy deformation
【Material used】 Aluminum alloy 6061
The 6 series aluminum alloy uses magnesium silicon as the main alloying elements.
1. Strength: T651 moderately high-strength grade is obtained through heat treatment, which is higher than the 5 series alloy.
2. Workability: The 6 series aluminum alloy plate is easier to process than the 5 series aluminum alloy under the condition of T651.
3. Formability: form T451 state after tempering, with higher formability.
4. Corrosion resistance: It can show excellent corrosion resistance when exposed to high temperature environment.
5. Weldability: In the heat affected zone, the tensile strength of welding can be reduced to 165-200 MPa. In special cases, post-weld heat treatment can restore some of the lost strength.
6. Stability consistency: As you know, the quality stability consistency of 6061-T651 board is indispensable. The material's proprietary chemistry, casting production technology have achieved excellent stability consistency.
【Surface treatment】Natural hard anodizing
The anodizing process is simple, the solution is stable, the operation is convenient, the allowable range of impurity content is wide, the power consumption is low, the cost is low, it can almost be applied to the processing of aluminum various aluminum alloys, so it has been widely used in China.
【Benefits after treatment】 Prevent oxidation corrosion of the surface of the parts increase surface hardness.
For most of the aluminum alloy products that require surface decoration, after chemical electrochemical polishing, then anodized with a solution, an oxide film with high transparency can be obtained. The oxide film can adsorb many colors of dyes, so aluminum products can be Made into various colors. This layer of color is both a protective film a decorative film.
【Processing equipment】 CNC machining center , drilling tapping machine
Processing equipment types: three-axis CNC machining center, four-axis CNC machining center, five-axis CNC machining center, gantry milling machining center, drilling tapping machine, CNC lathe, precision grinder, molding press, autoclave, western machine, fast wire cutting Machine, middle wire cutting machine, slow wire cutting machine other processing equipment.
【Precision size】 For finishing, the key position tolerance requirement is ±0.03mm; the size is 316mm*105mm*318.5mm
【Quantity Delivery Time】
Sample (1 piece minimum order): 2-7 days;
Small medium batch processing: 7-20 days;
Mass production: 20-35 days
Q1:What's kinds of information you need for quotation?
BENKY: You can provide 2D/3D drawing or send your sample to our factory, then we can make according to your sample.
Q2: Can we sign NDA?
BENKY: Sure. We never divulge customers' information to anyone else.
Q3: Do you provide sample?
BENKY: Yes, we can provide you sample before mass order.
Q4: How can you ensure the quality?
BENKY: We have profesional QC department to guarantee the quality.
Q5: Delivery time
BENKY: If in Stock: around 3 days after payment. Mass production: around 20~25 days after receipt of deposit (Accurate delivery time depends on specific items and quantities)
Q6: How about the transportation?
BENKY: You can choose any mode of transportation you want, sea delivery, air delivery or door to door express.
